GAMer User's Guide

Version 0.1

Table of Contents
  1. Overview
  2. Information and Resources
  3. Obtaining GAMer
  4. Frequently Asked Questions
  5. Installation Instructions
  6. Author Information
  7. Copyright and Terms of Use
  8. GNU GPL
NOTE: This documentation provides information about installation, configuration, and general usage of the GAMer libraries. Information about the programming interface provided by the GAMer software can be found in the Programmer's Guide.

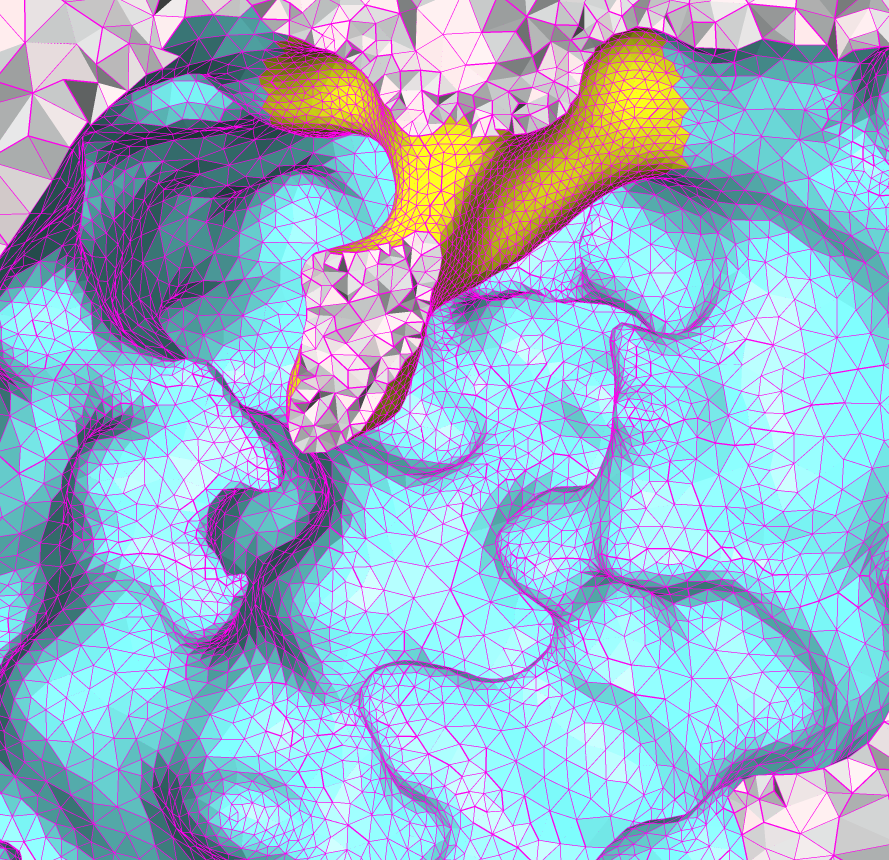

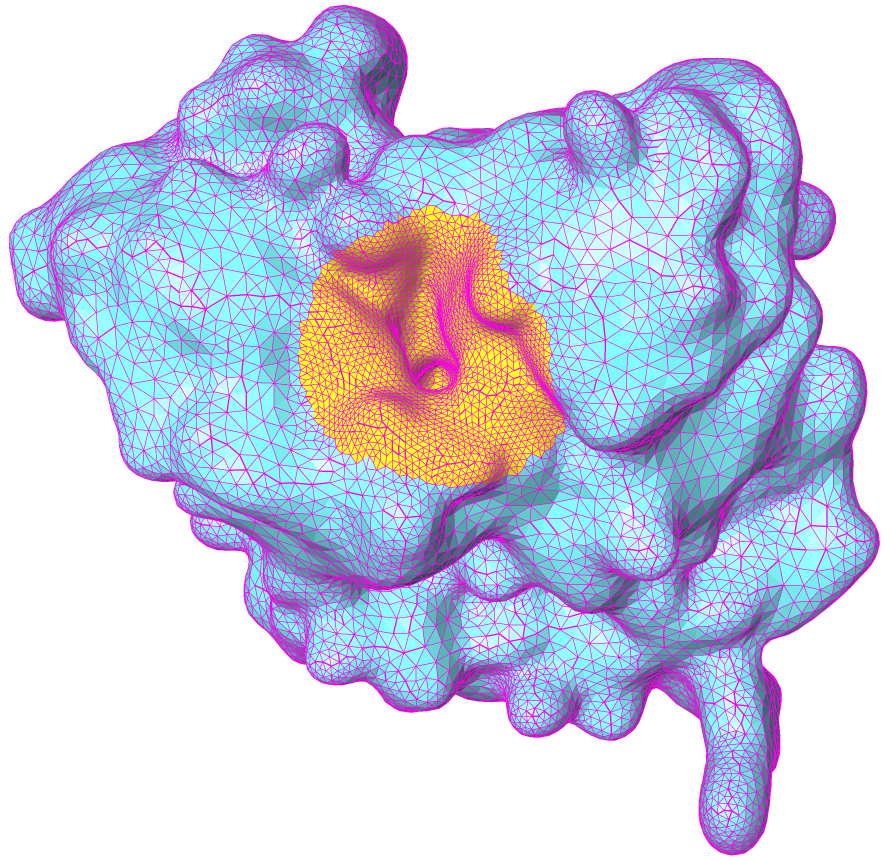

GAMer (Geometry-preserving Adaptive MeshER) is mesh generation tool that produces high-quality simplex meshes of surfaces and volumes (see figures below). It is built on top of two state-of-the-art mesh generators: Triangle (for 2D constrained Delaunay meshes in the plane) and Tetgen (for 3D constrained Delaunay meshes in space), combined with a collection of algorithms for generating, improving, refining, and decimating surface triangulations of imbedded interior or exterior domain surfaces. GAMer can be used as a small stand-alone adaptive mesh generator.

image image

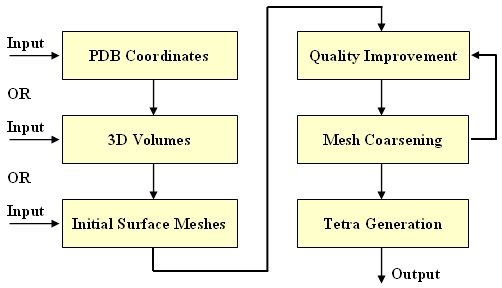

GAMer can take as input a number of formats, including PDB, PQR, OFF, RawIV, and XYZR. The PDB is a standard format used in the Protein Data Bank for bio-molecules. A PQR format may be generated from PDB using PDB2PQR. The OFF is a format used in Geomview for mesh representation. More details on this format may be found at here. GAMer can also generate meshes from a 3D volume represented RawIV as used internally in CVC at UT-Austin. The XYZR format is a simplified version of the PDB/PQR format, which contains only the center (xyz) and radius (r) of each atom in a molecule. A brief structure of GAMer is shown in the following figure.


GAMer was designed primarily to generate high-quality and adaptive meshes for biomedical simulation, although it can also be used for general problems that require "good" surface and tetrahedral meshes. The outputs of GAMer can be used directly in FETK or, with slight modifications, in other finite element based numerical solvers. Ongoing projects include efficient algorithms for tetrahedral mesh smoothing and localized mesh deformation for simulation of molecular/cellular dynamics.

Information and Resources

Detailed information about GAMer can be found in the User's Guide and Programmers's Guide.

While GAMer is itself a self-contained software package, it is one of several components of FETK (the Finite Element ToolKit). FETK consists of the following components written in Clean OO C:
  • MALOC - Minimal Abstraction Layer for Object-oriented C programs.
  • PUNC - Portable Understructure for Numerical Computing.
  • GAMer - Geometry-preserving Adaptive MeshER (uses MALOC).
  • SG - Socket Graphics mesh display tool (uses MALOC).
  • MC - Manifold Code finite element package (uses MALOC and PUNC).
  • MCX - MC eXtension libraries (uses MALOC, PUNC, and MC).

MALOC is self-contained, and requires only an ANSI-C compiler on a UNIX or Win32 platform. PUNC, GAMer, SG, and MC are also self-contained, but rely on MALOC having been previously installed on the platform. Additional features of MC are enabled if PUNC is available, but PUNC is not required to build MC. The MC eXtension libraries MCX are constructed on top of MALOC and MC, and in order install and use MCX one must first correctly configure and install both MALOC and MC. MCX is made up of a number of individual libraries developed by members of our group, or contributed by one of a number of colleagues. More information about FETK can be found on the FETK website:

Obtaining GAMer

GAMer is copyrighted, but is redistributable in source and binary form under the following license. The GAMer source can be downloaded from the FETK Download Page.

GAMer uses the low-level FETK abstraction library MALOC, which must be installed before installing GAMer.

Frequently Asked Questions

Why did you develop GAMer, given many other mesh generation packages?

The existing mesh generation tools for biomedical applications, especially bio-molecular surface and volumetric mesh generation, are suffering from either being slow or having poorly-shaped angles (too small or too large). GAMer was developed in the hope that it could provide a fast tool of finite element mesh generation with the following properties: (1) feature-preservation, (2) local adaptivity, (3) high quality (measured by angles), and (4) smoothness (for surface meshes).

What is in all of these subdirectories? Where exactly is "GAMer"?

GAMer consists of several (class) libraries from which you will call routines to handle your application. You will need to write a main driver program (and any supporting routines you need to define your problem) and then link to the libraries. As described in the file "INSTALL", you will build all of the libraries in one shot for your particular architecture, along with a test program to verify that the various pieces are functioning correctly. After the build, you will be ready to work with your particular application main driver, and you just need to link to the libraries. Sample main drivers and makefiles are in the "gamer/tools/*" subdirectories. Things are setup for you to work completely in one of those directories. Of course, all you really have to do is link to the GAMer libraries, so you can use it how you like; the makefiles and drivers in "gamer/tools/*" just provide an example of how to get GAMer working correctly.

The following directory tree is created when you unpack the GAMer "GAMer.tgz" distribution file by following the instructions in the INSTALL document:

                        /    |      |       |    \
                     config  doc  examples  src tools

The src directory has the additional subdirectory structure for each library forming GAMer:

                     /    |      |    |     |       \
                aaa_inc aaa_lib base biom tetgen triangle

Within each library source directory is an additional subdirectory, "GAMer". The "GAMer" subdirectory contains public headers for the library, representing the library API; these headers will be installed in the specified header install directory during the install procedure after building GAMer.

The following is a brief description of each subdirectory of the package.

    gamer              - The entire GAMer package
    gamer/config       - GNU Autoconf scripts and non-unix config files
    gamer/doc          - GAMer documentation
    gamer/examples     - Complex examples and data files for using GAMer
    gamer/src          - GAMer source code (all source and headers)
    gamer/src/aaa_inc  - Header installation tools
    gamer/src/aaa_lib  - Library installation tools
    gamer/src/*/gamer  - The GAMer headers (API)
    gamer/src/base     - Source for M. Holst's BASE (GAMer foundation)
    gamer/src/biom     - Source code for GAMer mesh generation/processing
    gamer/src/tetgen   - Source code for tetrahedral generation (TetGen)
    gamer/src/triangle - Source code for triangle generation (Triangle)
    gamer/tools        - Some examples for use with gamer

Okay, I seem to have installed GAMer correctly; how do I actually use it now?

GAMer can be called as a subroutine or used as a stand-alone program. There are examples in "/tools/MeshGen.C" for both cases. When GAMer is called as a subroutine, it returns the tetrahedral meshes into a data structure called GemMesh defined as follows (similar to the mcsf format used in FETK):

    typedef struct {
      int dim;
      int dimii;
      int vertices;
      int simplices;
      FETK_VX *vv;
      FETK_SS *ss;
    } GemMesh;

where FETK_VX and FETK_SS are defined as:

    typedef struct {
      int id;
      int chrt;
      float x;
      float y;
      float z;
    } FETK_VX;

    typedef struct {
      int id;
      int grp;
      int mat;
      int fa;
      int fb;
      int fc;
      int fd;
      int na;
      int nb;
      int nc;
      int nd;
    } FETK_SS;

When GAMer is used as a stand-alone program, it writes the results into a file named "abc.pdb.output.out.m", assuming that the input be named "abc.pdb". This format can be used directly in FETK. The output tetrahedra may be given in three forms in case of the molecular mesh generation, where a large bounding sphere is used around the molecule:

(1) The tetrahedral mesh is generated both inside and outside the molecule:
        Usage: GAMer abd.pdb 1

(2) The tetrahedral mesh is generated only inside the molecule:
        Usage: GAMer abd.pdb 2

(3) The tetrahedral mesh is generated only outside the molecule:
        Usage: GAMer abd.pdb 3

How do I specify the active sites of a molecule?

one or more active sites may be specified for a molecule, such that the mesh generated may be made denser near the active site than the mesh elsewhere and indexed differently. To generate the mesh with active sites, one can use the following sample command:

        Usage: GAMer abd.pdb 1(2 or 3) active_site.dat,

where the active_site.dat is defined by a list of spheres as follows:

    # First Line:
    #     # of active sites, and # of spheres in each active site
    # The remaining lines are grouped by active sites.
    # For each line of an active site:
    #     (x,y,z): coordinates of sphere centers
    #     (r): radius of the sphere
    #     (index): the index used to represent the active site
    # Note that 2,4,5 have been reserved for other purposes
    # So, don't use these numbers for index
    n m
    x11 y11 z11 r11 1
    x12 y12 z12 r12 1
    x1m y1m z1m r1m 1
    x21 y21 z21 r21 2
    x22 y22 z22 r22 2
    x2m y2m z2m r2m 2

How do I modify the "hidden" parameters in GAMer?

All the "hidden" parameters may be modified in the header "gamer/src/biom/gamer/biom.h". We plan to expose some of these parameters in a later version using a graphical user interface.

Installation Instructions

Available distribution formats

GAMer is distributed in both binary format (as a binary RPM file GAMer-VERSION.i386.rpm for i386-based versions of Linux) and in source format (as a source RPM file GAMer-VERSION.src.rpm and as a gzipped tar file "GAMer-VERSION.tar.gz").

Installation using the binary RPM file

The following rpm command will install all of the GAMer headers and libraries into /usr/local/include and /usr/local/lib, and will install the GAMer documentation into /usr/share/doc/packages/GAMer:

    rpm -Uvh GAMer-VERSION.i386.rpm

Installation and rebuilding from sources using the source RPM file

The following rpm command will unpack the source rpm file "GAMer-VERSON.src.rpm" into the GAMer gzipped tar file containing the sources called "GAMer-VERSION.tar.tar.gz" and into a small RPM spec file called "GAMer-VERSON.spec":

    rpm -Uvh GAMer-VERSION.src.rpm

The sources can then be unpacked and built using the directions for the gzipped tar file below. Alternatively, the following rpm command will do these steps for you:

    rpm -bp GAMer-VERSION.spec

Rebuilding binary and source RPM files from the gzipped tar file

The GAMer sources contain the RPM spec file "GAMer-VERSON.spec" in the root source directory; as a result, rebuilding the RPM files from sources can be done using the rpm command:

    rpm -ta GAMer-VERSION.tar.gz

The result will be the corresponding source and binary rpm files, named "GAMer-VERSON.src.rpm" and "GAMer-VERSION.i386.rpm". Normally, these files are written to /usr/src/redhat/SRPMS and /usr/src/redhat/RPMS respectively, but you must be logged in as root for these to work. The destination directories can be overriden using arguments to the rpm program (see the rpm manpage).

Installation and building from sources using the gzipped tar file

The following command will unpack GAMer into a number of subdirectories and files on any UNIX machine (and on any WinNT machine with the GNU-Win32 tools gzip and tar).

    gzip -dc GAMer.tgz | tar xvf -

GAMer is essentially a multilevel adaptive finite element "kernel". It is designed to be easily extended through the use of extension packages which are constructed on top of GAMer. The extension packages that I have written such such as GAMergp (GAMer for Geometric PDEs) are also distributed as gzipped tar files (e.g. "GAMergp.tgz"). The installation instructions for such extension packages are identical to the instructions below for the GAMer kernel (e.g., substitute "GAMergp" for every occurance of "GAMer" below).

Building the package using the GNU "configure" shell script and "make"

The "configure" shell script in the "GAMer" directory (the toplevel directory created when you unpacked the GAMer tgz file) will build the entire package. This is a standard GNU autoconf-generated configuration script. For a list of the possible configuration options, type:

    ./configure --help

You should be able to build GAMer by simply typing:

    make install

However, it is often advantageous to keep the original source directory pristine; the configure script can actually be run outside the source tree, which will keep all files created by the build outside the source tree. (This idea is related to the section below describing how to build binaries for multiple architectures at the same time using the same source tree, and requires that your version of make has the VPATH facility, such as GNU make.) For example, I build GAMer in a separate directory from the source tree as follows:

    gzip -dc GAMer.tgz | tar xvf -
    mkdir GAMer_build
    cd GAMer_build
    make install

Building binaries for multiple architectures in the same source directory

If you have a version of "make" that supports the VPATH facility (such as any recent version of GNU make), then you can build the package for multiple architectures in the same source directory (in fact, you can do the compiles at the same time without collisions). This is very useful if you have your home directory on an NFS volume that you share among multiple architectures, such as SGI, Linux, etc. To build GAMer for all the systems at the same time, you simply make an additional subdirectory in the main GAMer directory for each architecture, copy "configure" into it, "cd" into the subdirectory, and then install as above. For example, on a linux machine you would do the following:

    mkdir linux
    cp configure linux/.
    cd linux
    make install

If you mount the same NFS home directory on for example an OpenStep box, you could at the same time do the following:

    mkdir next
    cp configure next/.
    cd next
    make install

Again, both builds can actually be done outside the source tree rather than in a subdirectory of the source tree, as described in the previous section.

Rebuilding the configure script and the files

If for some reason you actually need to rebuild the configure script or the files using the GNU autoconf suite, you should read the block of documentation at the top of the file. The commentary I put there explains exactly how the GNU autoconf suite must be used and in what order, and exactly what files are produced at each step of the process. A script called "bootstrap" which automates this process is located in the config subdirectory of the GAMer source tree.

Platform-specific information

Below is some platform-specific build/usage information for GAMer.
  • Linux (Source: M. Holst, UCSD)

    Things should work as described above.

  • FreeBSD/NetBSD/OpenBSD (Source: M. Holst, UCSD)

    Things should work as described above.

  • OpenStep (Source: M. Holst, UCSD)

    Things should just work, but you may have to set the CC environment variable as follows before typing ./configure:
        export CC="/bin/cc"
    or you might need to use:
        export CC="/bin/cc -ObjC"

  • IRIX (Source: M. Holst, UCSD)

    If you are on a 64-bit IRIX box such as an Onyx, Octane, or Origin, set the CC environment variable as follows before typing ./configure:
        export CC="/bin/cc -64"
    If you are on a 32-bit IRIX box such as an O2 or Indy, set the CC environment variable as follows before typing ./configure:
        export CC="/bin/cc -32"

  • Win32 (Source: M. Holst, UCSD)

    Unless you have the Cygwin environment, you need to use one of the included project file collections for one of the commercially available ANSI C or C++ compilers for the Win32 environment.

Debugging using the ElectricFence malloc debug library

To allow ElectricFence to intercept all calls to malloc, free, and related dynamic memory allocation system calls, simply run the configure script as follows:
    ./configure --enable-efence
    make clean; make; make install

Author Information

GAMer was developed primarily by Zeyun Yu in the Holst Research Group at UC San Diego. Below is a credits list for the people that have contributed to GAMer in one way or another. The fields below follow the credits file format used in the Linux kernel CREDITS file to allow for easy manipulation via shell scripts. The fields are as follows:

          N: name of contributor
          E: email address
          W: web address
          P: PGP key ID and fingerprint
          D: description of primary contributions
          S: snail-mail address

N: Zeyun Yu
D: GAMer/doc/*             -- Package documentation (with M. Holst)
D: GAMer/examples/*        -- Package examples (in progress)
D: GAMer/src/biom/*        -- Main source code of GAMer
D: GAMer/tools/*           -- Tools built on the libraries
S: Department of Mathematics
S: UC San Diego
S: La Jolla, CA 92093 USA

N: Michael Holst
P: 1024/0xB5212DCD
D: Makefile*               -- Makefiles for GAMer
D: GAMer/acconfig.h        -- Platform abstraction information
D: GAMer/      -- GNU autoconf/automake structure
D: GAMer/config/*          -- GNU autoconf/automake shell scripts
D: GAMer/doc/*             -- Package documentation (with Z. Yu)
D: GAMer/src/aaa_inc/*     -- Library header build structure
D: GAMer/src/aaa_lib/*     -- Static/shared library build structure
D: GAMer/src/base/*        -- Foundation headers
S: Department of Mathematics
S: UC San Diego, AP&M 5739
S: La Jolla, CA 92093 USA

Software included in the GAMer source code package

A complete roadmap to the source code forming the GAMer package can be found above. While the core GAMer functions were developed by Zeyun Yu, the following libraries are currently also included with GAMer:

    GAMer/src/tetgen/     -- Quality Tetrahedral Mesh Generator and
                             3D Delaunay Triangulator
                             (provided by Hang Si)
    GAMer/src/triangle/   -- Two-Dimensional Quality Mesh Generator
                             and Delaunay Triangulator
                             (provided by Jonathan Richard Shewchuk)

Contacting the Author

If you have questions or comments about GAMer, please feel free to contact us at or

Copyright and Terms of Use

Please acknowledge your use of GAMer by citing:
  • Z. Yu, M. Holst, Y. Cheng, and J.A. McCammon, Feature-Preserving Adaptive Mesh Generation for Molecular Shape Modeling and Simulation. Journal of Molecular Graphics and Modeling, 26(8) (2008), pp. 1370-1380.

This version of GAMer is distributed under the following guidelines:
  • GAMer (Geometry-preserving Adaptive MeshER)
    Copyright (C) 2007-2010 Zeyun Yu and Michael Holst

    This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

    This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

    You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 675 Mass Ave, Cambridge, MA 02139, USA.


The GPL (GNU General Public License) below is copyrighted by the Free Software Foundation. However, the instance of software that it refers to, my package in this case, is copyrighted by myself as the author of the package. Any additional software that I distribute with my software is copyrighted by the authors of those pieces of software (see the individual source files for author information). ---Zeyun Yu and Michael Holst

		       Version 2, June 1991

 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
 Everyone is permitted to copy and distribute verbatim copies
 of this license document, but changing it is not allowed.


  The licenses for most software are designed to take away your
freedom to share and change it.  By contrast, the GNU General Public
License is intended to guarantee your freedom to share and change free
software--to make sure the software is free for all its users.  This
General Public License applies to most of the Free Software
Foundation's software and to any other program whose authors commit to
using it.  (Some other Free Software Foundation software is covered by
the GNU Library General Public License instead.)  You can apply it to
your programs, too.

  When we speak of free software, we are referring to freedom, not
price.  Our General Public Licenses are designed to make sure that you
have the freedom to distribute copies of free software (and charge for
this service if you wish), that you receive source code or can get it
if you want it, that you can change the software or use pieces of it
in new free programs; and that you know you can do these things.

  To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if you
distribute copies of the software, or if you modify it.

  For example, if you distribute copies of such a program, whether
gratis or for a fee, you must give the recipients all the rights that
you have.  You must make sure that they, too, receive or can get the
source code.  And you must show them these terms so they know their

  We protect your rights with two steps: (1) copyright the software, and
(2) offer you this license which gives you legal permission to copy,
distribute and/or modify the software.

  Also, for each author's protection and ours, we want to make certain
that everyone understands that there is no warranty for this free
software.  If the software is modified by someone else and passed on, we
want its recipients to know that what they have is not the original, so
that any problems introduced by others will not reflect on the original
authors' reputations.

  Finally, any free program is threatened constantly by software
patents.  We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the
program proprietary.  To prevent this, we have made it clear that any
patent must be licensed for everyone's free use or not licensed at all.

  The precise terms and conditions for copying, distribution and
modification follow.


  0. This License applies to any program or other work which contains
a notice placed by the copyright holder saying it may be distributed
under the terms of this General Public License.  The "Program", below,
refers to any such program or work, and a "work based on the Program"
means either the Program or any derivative work under copyright law:
that is to say, a work containing the Program or a portion of it,
either verbatim or with modifications and/or translated into another
language.  (Hereinafter, translation is included without limitation in
the term "modification".)  Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope.  The act of
running the Program is not restricted, and the output from the Program
is covered only if its contents constitute a work based on the
Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.

  1. You may copy and distribute verbatim copies of the Program's
source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the
notices that refer to this License and to the absence of any warranty;
and give any other recipients of the Program a copy of this License
along with the Program.

You may charge a fee for the physical act of transferring a copy, and
you may at your option offer warranty protection in exchange for a fee.

  2. You may modify your copy or copies of the Program or any portion
of it, thus forming a work based on the Program, and copy and
distribute such modifications or work under the terms of Section 1
above, provided that you also meet all of these conditions:

    a) You must cause the modified files to carry prominent notices
    stating that you changed the files and the date of any change.

    b) You must cause any work that you distribute or publish, that in
    whole or in part contains or is derived from the Program or any
    part thereof, to be licensed as a whole at no charge to all third
    parties under the terms of this License.

    c) If the modified program normally reads commands interactively
    when run, you must cause it, when started running for such
    interactive use in the most ordinary way, to print or display an
    announcement including an appropriate copyright notice and a
    notice that there is no warranty (or else, saying that you provide
    a warranty) and that users may redistribute the program under
    these conditions, and telling the user how to view a copy of this
    License.  (Exception: if the Program itself is interactive but
    does not normally print such an announcement, your work based on
    the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole.  If
identifiable sections of that work are not derived from the Program,
and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works.  But when you
distribute the same sections as part of a whole which is a work based
on the Program, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or
collective works based on the Program.

In addition, mere aggregation of another work not based on the Program
with the Program (or with a work based on the Program) on a volume of
a storage or distribution medium does not bring the other work under
the scope of this License.

  3. You may copy and distribute the Program (or a work based on it,
under Section 2) in object code or executable form under the terms of
Sections 1 and 2 above provided that you also do one of the following:

    a) Accompany it with the complete corresponding machine-readable
    source code, which must be distributed under the terms of Sections
    1 and 2 above on a medium customarily used for software interchange; or,

    b) Accompany it with a written offer, valid for at least three
    years, to give any third party, for a charge no more than your
    cost of physically performing source distribution, a complete
    machine-readable copy of the corresponding source code, to be
    distributed under the terms of Sections 1 and 2 above on a medium
    customarily used for software interchange; or,

    c) Accompany it with the information you received as to the offer
    to distribute corresponding source code.  (This alternative is
    allowed only for noncommercial distribution and only if you
    received the program in object code or executable form with such
    an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for
making modifications to it.  For an executable work, complete source
code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to
control compilation and installation of the executable.  However, as a
special exception, the source code distributed need not include
anything that is normally distributed (in either source or binary
form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component
itself accompanies the executable.

If distribution of executable or object code is made by offering
access to copy from a designated place, then offering equivalent
access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not
compelled to copy the source along with the object code.

  4. You may not copy, modify, sublicense, or distribute the Program
except as expressly provided under this License.  Any attempt
otherwise to copy, modify, sublicense or distribute the Program is
void, and will automatically terminate your rights under this License.
However, parties who have received copies, or rights, from you under
this License will not have their licenses terminated so long as such
parties remain in full compliance.

  5. You are not required to accept this License, since you have not
signed it.  However, nothing else grants you permission to modify or
distribute the Program or its derivative works.  These actions are
prohibited by law if you do not accept this License.  Therefore, by
modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying
the Program or works based on it.

  6. Each time you redistribute the Program (or any work based on the
Program), the recipient automatically receives a license from the
original licensor to copy, distribute or modify the Program subject to
these terms and conditions.  You may not impose any further
restrictions on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties to
this License.

  7. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License.  If you cannot
distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all.  For example, if a patent
license would not permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly through you, then
the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under
any particular circumstance, the balance of the section is intended to
apply and the section as a whole is intended to apply in other

It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system, which is
implemented by public license practices.  Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot
impose that choice.

This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.

  8. If the distribution and/or use of the Program is restricted in
certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Program under this License
may add an explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in or among
countries not thus excluded.  In such case, this License incorporates
the limitation as if written in the body of this License.

  9. The Free Software Foundation may publish revised and/or new versions
of the General Public License from time to time.  Such new versions will
be similar in spirit to the present version, but may differ in detail to
address new problems or concerns.

Each version is given a distinguishing version number.  If the Program
specifies a version number of this License which applies to it and "any
later version", you have the option of following the terms and conditions
either of that version or of any later version published by the Free
Software Foundation.  If the Program does not specify a version number of
this License, you may choose any version ever published by the Free Software

  10. If you wish to incorporate parts of the Program into other free
programs whose distribution conditions are different, write to the author
to ask for permission.  For software which is copyrighted by the Free
Software Foundation, write to the Free Software Foundation; we sometimes
make exceptions for this.  Our decision will be guided by the two goals
of preserving the free status of all derivatives of our free software and
of promoting the sharing and reuse of software generally.





	    How to Apply These Terms to Your New Programs

  If you develop a new program, and you want it to be of the greatest
possible use to the public, the best way to achieve this is to make it
free software which everyone can redistribute and change under these terms.

  To do so, attach the following notices to the program.  It is safest
to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least
the "copyright" line and a pointer to where the full notice is found.

    (one line to give the program's name and a brief idea of what it does.)
    Copyright (C) 19yy  < name of author >

    This program is free software; you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation; either version 2 of the License, or
    (at your option) any later version.

    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    GNU General Public License for more details.

    You should have received a copy of the GNU General Public License
    along with this program; if not, write to the Free Software
    Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this
when it starts in an interactive mode:

    Gnomovision version 69, Copyright (C) 19yy name of author
    Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'.
    This is free software, and you are welcome to redistribute it
    under certain conditions; type `show c' for details.

The hypothetical commands `show w' and `show c' should show the appropriate
parts of the General Public License.  Of course, the commands you use may
be called something other than `show w' and `show c'; they could even be
mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your
school, if any, to sign a "copyright disclaimer" for the program, if
necessary.  Here is a sample; alter the names:

  Yoyodyne, Inc., hereby disclaims all copyright interest in the program
  `Gnomovision' (which makes passes at compilers) written by James Hacker.

  < signature of Ty Coon >, 1 April 1989
  Ty Coon, President of Vice

This General Public License does not permit incorporating your program into
proprietary programs.  If your program is a subroutine library, you may
consider it more useful to permit linking proprietary applications with the
library.  If this is what you want to do, use the GNU Library General
Public License instead of this License.
